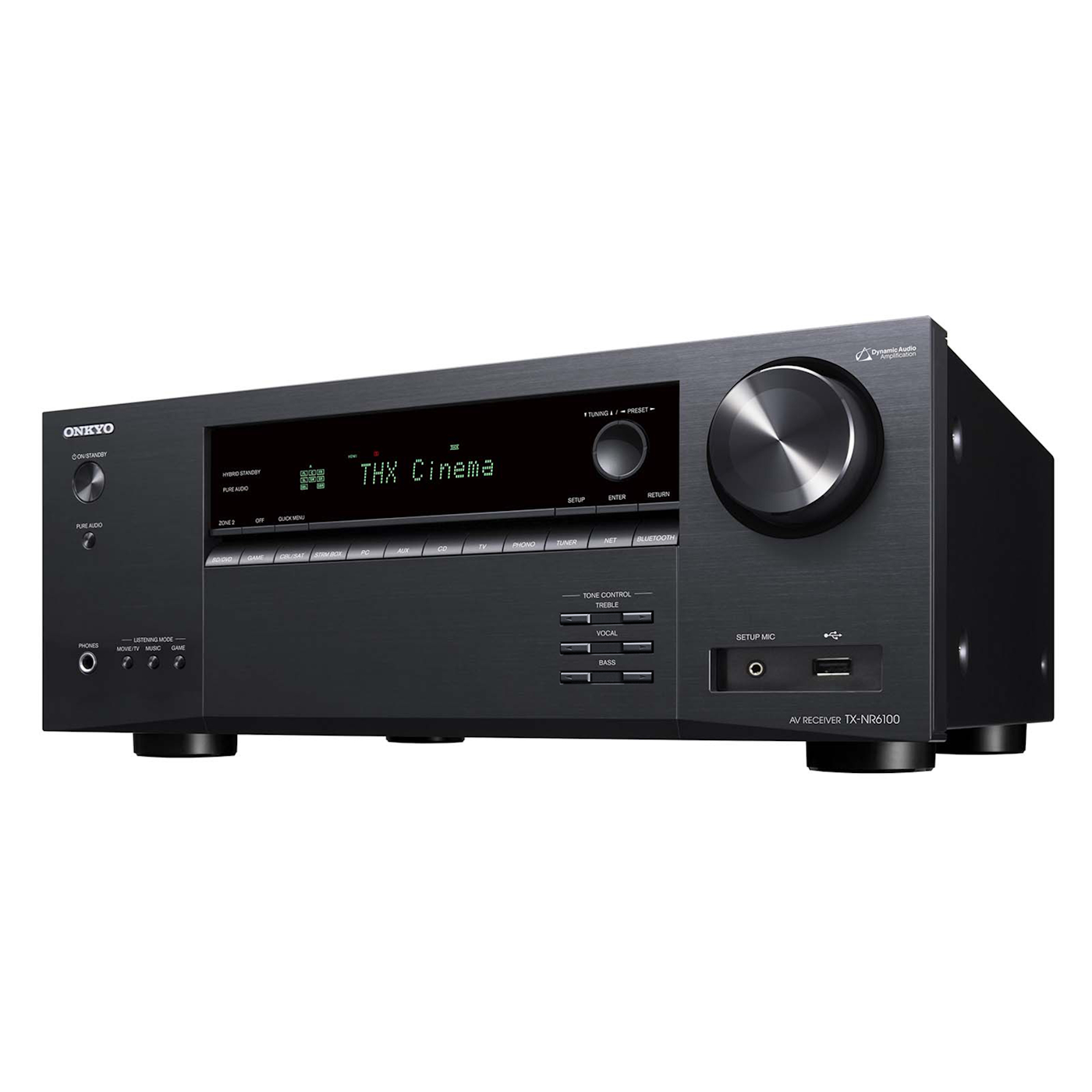

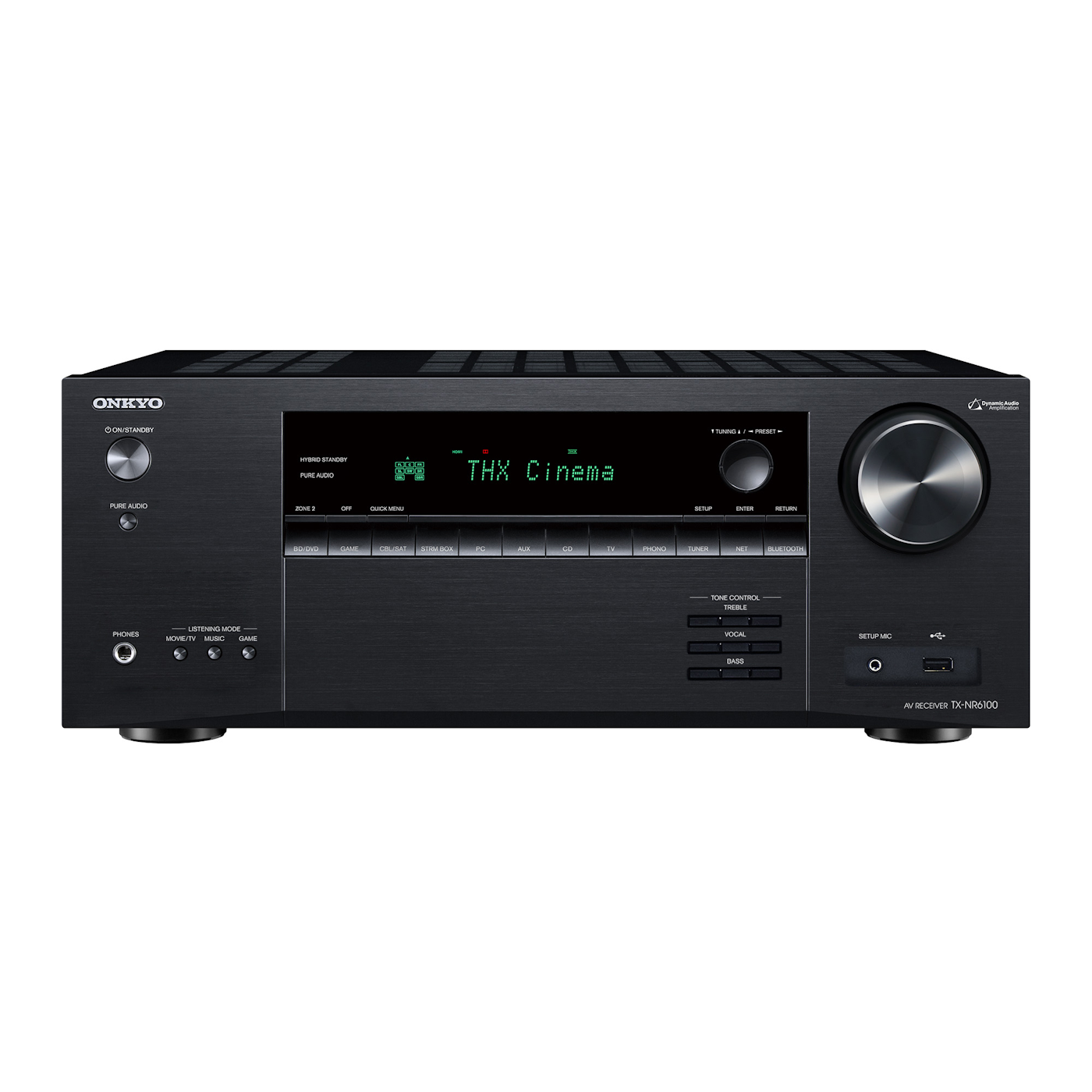

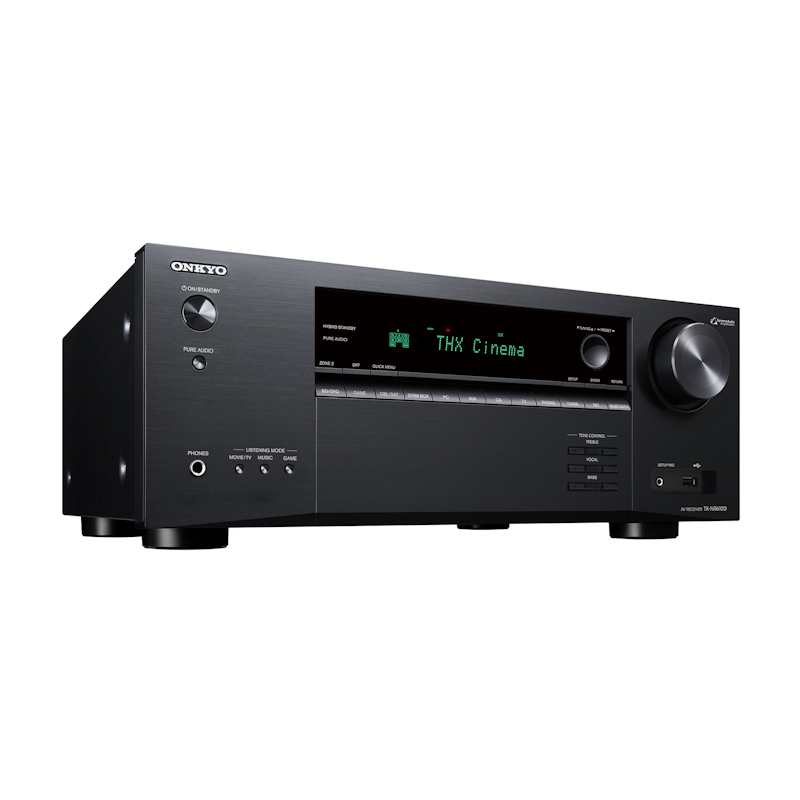

TX-NR6100
7.2-Channel THX Certified AV Receiver
Delivering precision sound and images with an emphasis on an enhanced gaming experience – now you can own your opponents with HDMI 2.1 enhancements for gaming
Additional Features
Smart Home Compatible with Voice Control
Onkyo receivers easily integrate into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*
*Requires third-party AI compatible smart home device with microphone
Works with Sonos Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
*Sonos Port required and sold separately
Bi-Directional Bluetooth Wireless Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material.
Ready for DTS Play-Fi
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
Looking for more? Check out these similar products
Features
PRODUCT HIGHLIGHTS
| 210 W/Ch THX® Certified Select Dynamic Audio Amplification system | ✓ |
| 5.2.2-channel Dolby Atmos® and DTS:X playback | ✓ |
| AccuReflex phase-matching solution for Atmos-enabled speakers | ✓ |
| SMART AV Receiver™ | Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services |
| Works with Hey Google or Alexa | Sold separately |
| Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard | ✓ |
| HDMI® inputs | Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support up to 4K/60 and HDMI 2.0 features. |
| HDMI 2.1 | HDMI 2.1 features are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out). |
| HDMI Sub/Zone 2 Out for media transmission to a second display | ✓ |
| Send or receive audio via Bluetooth® wireless technology | RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD |
| Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines | ✓ |
| 5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback | ✓ |
| Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks | ✓ |
Specs
AMPLIFIER
| Power output (All channels) | 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power | 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, half power) |
| Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
| Frequency response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker impedance | 4–16 ohms |
TUNER
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
GENERAL
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 635 W |
| Power consumption (idle) | 65 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm) |
| Weight | 21.7 lb (9.8 kg) |
UPC Code
| (B) | 889951003489 |
CARTON
| Dimensions (W x H x D) | 21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm) |
| Weight | 27.7 lbs (12.5 kg) |
ACCESSORIES INCLUDED
| Power cord | ✓ |
| Indoor FM antenna | ✓ |
| AM loop antenna | ✓ |
| Speaker setup microphone | ✓ |
| Quick Start Guide | ✓ |

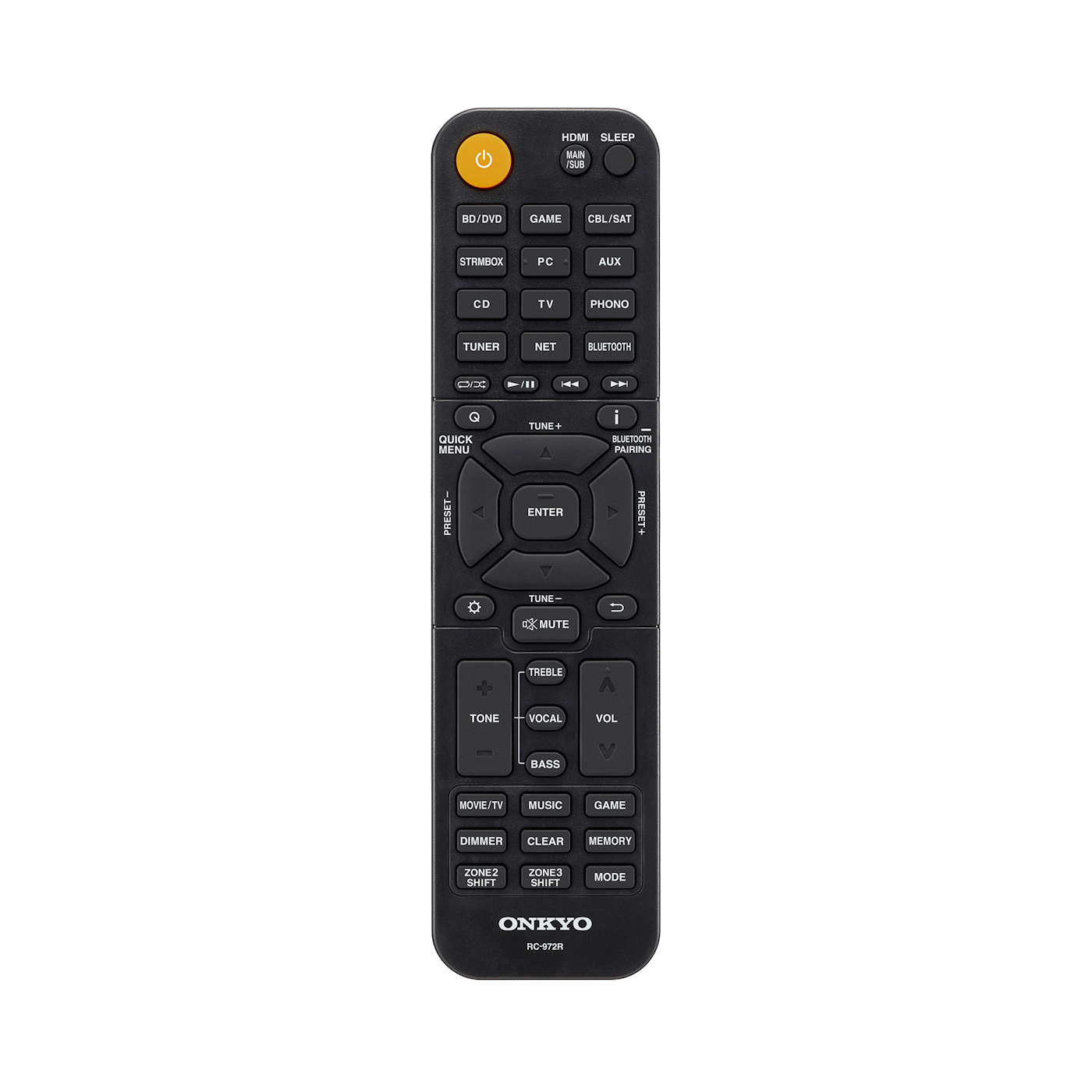

| Remote control | ✓ |
| Two AAA (R03) batteries | ✓ |
