TX-RZ50

9.2-Channel THX Certified AV Receiver

The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.

Onkyo TXRZ50 AV Receiver in bar area MOBILE EISA 3
Onkyo TXRZ50 AV Receiver in bar area 2 EISA

"Thanks to an extensive feature set, including full-bandwidth Dirac Live for in-depth calibration, Onkyo’s TX-RZ50 receiver offers impressive value for money."

READ MORE
Klipsch Optimized With RP 8060 FA II RP 504 C II Onkyo TX NX6100 MOBILE
Klipsch Optimized With RP 8060 FA II RP 504 C II Onkyo TX NX6100 DESKTOP

Klipsch Optimize Mode

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

SHOP KLIPSCH
TV and Onkyo TX RZ50 and Klipsch System in Immersive Movie Dirac MOBILE
TV and Onkyo TX RZ50 and Klipsch System in Immersive Movie Dirac 2000x1333

Take the room out of the equation

State-of-the-art Dirac Live Room Correction technology unlocks your loudspeakers' full potential, improving audio performance across the full frequency band without additional upgrades. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic or virtually wireless with the Dirac Live PC or MacOS* application and a 3rd party USB mic (not included). Now, you'll get a more accurate measurement of your surround sound system's positioning to be more precise and balanced, providing a better result with the increased upper limit of delay time from 20 to 50 milliseconds.

*Device must be connected to the internet and the same network as your AVR

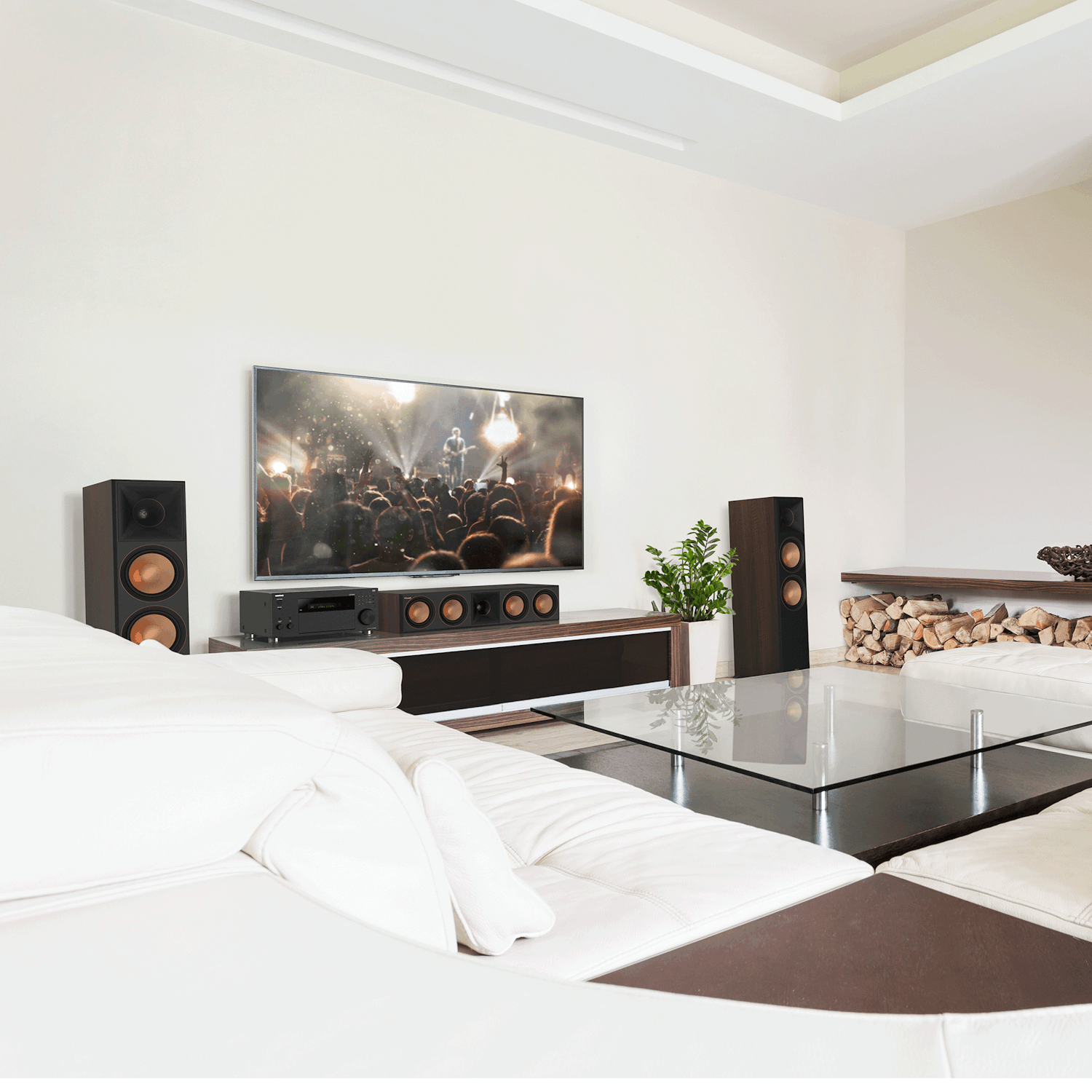

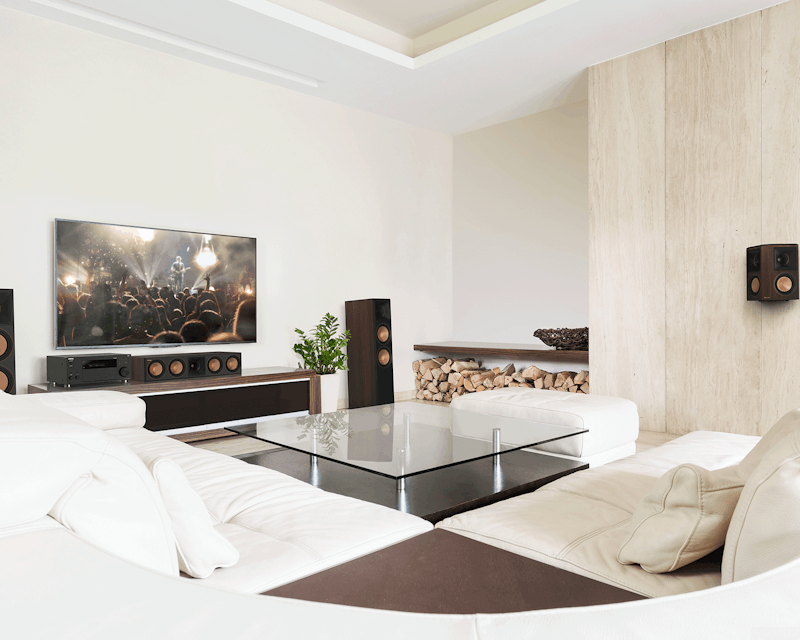

Onkyo TX RZ50 and Klipsch RP8000 F RP504 C RP502 S Upscale Home MOBILE
Onkyo TX RZ50 and Klipsch RP8000 F RP504 C RP502 S Upscale Home

11.2-Channel Processing

The TX-RZ50 features up to 11.2 channel processing and pre-outs for 7.2.4 system layouts, making it an ideal choice for your premium home theater setup.

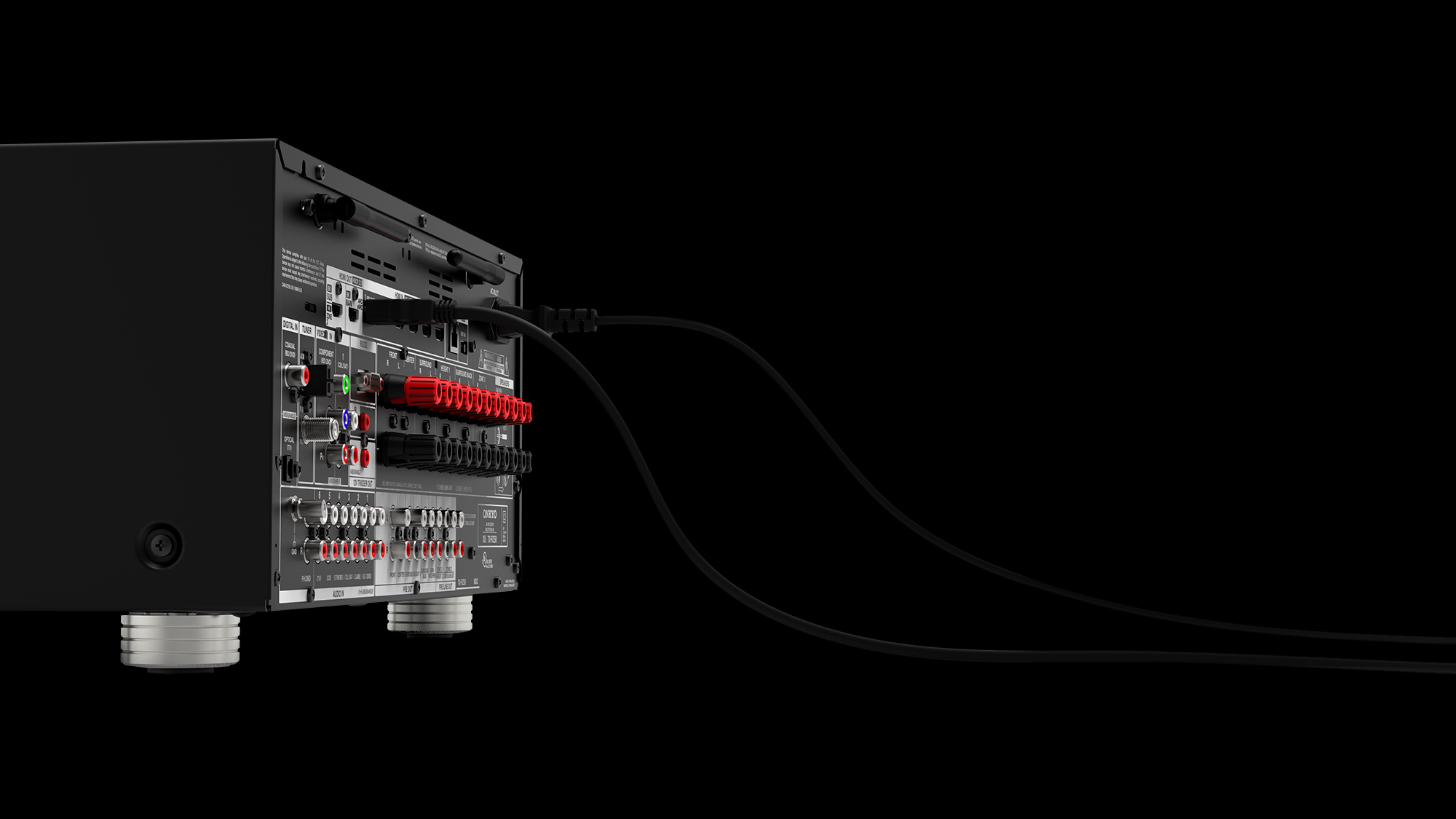

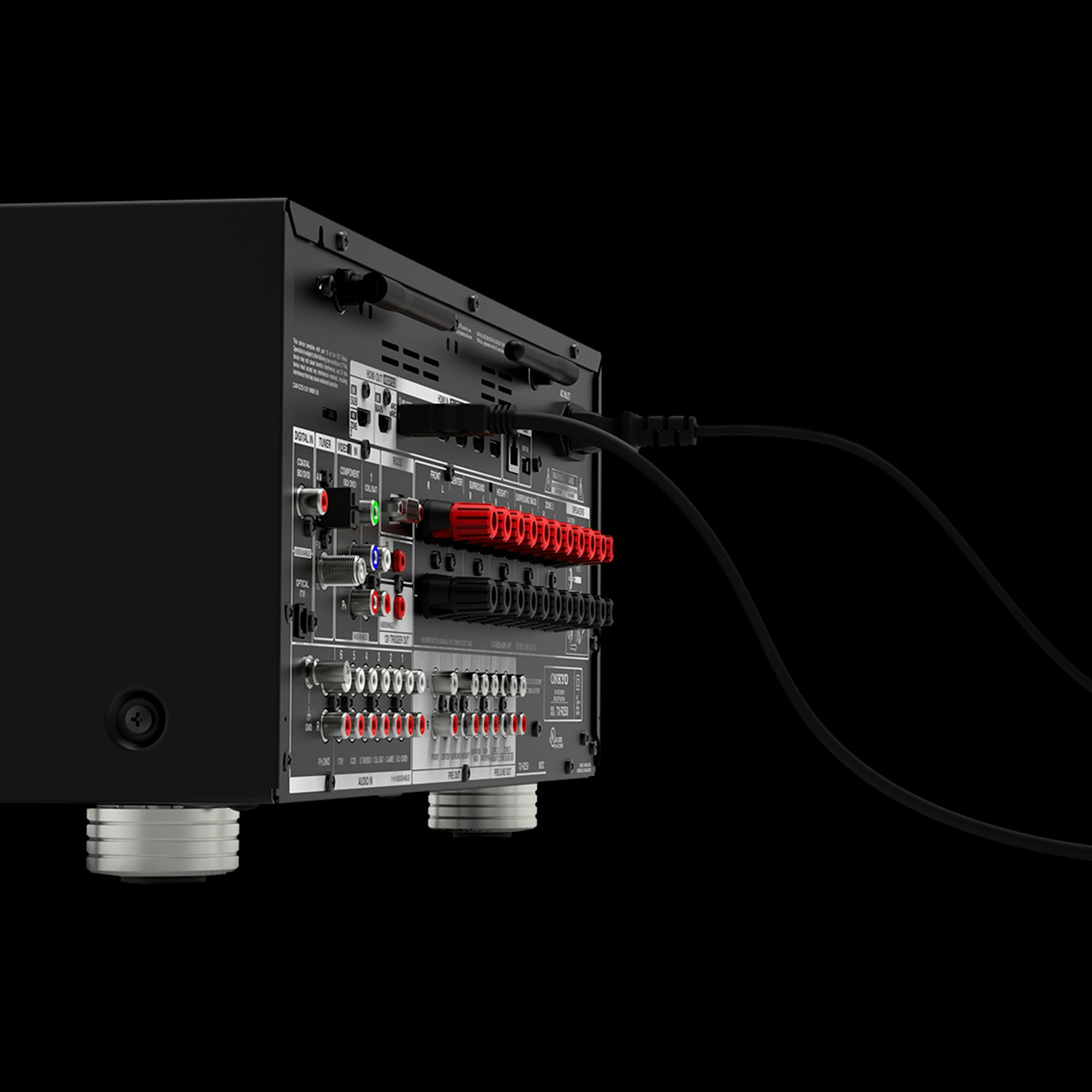

TX RZ50 Connectivity MOBILE
TX RZ50 Connectivity 2000x1333

HDMI 2.1 with 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

Additional Features and Benefits

Ultimate 4K Gaming Experience

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.

Discrete Zone 2 HDMI Switching

Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*

*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.

THX Certified

In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

IMAX Enhanced Mode

A vital component of today’s premium home theater experience, this IMAX Enhanced certified AVR replicates the immersive audio and visual quality of IMAX theaters from the comfort of your living room. By allowing object-based audio to be precisely placed and moved in 3D space, in combination with proprietary algorithms optimizing video quality, you’ll experience a vibrant, lifelike experience just as the filmmaker intended.

Built-In Multi-Zone Streaming and Voice Control

The Onkyo TX-RZ50 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**

*A third-party AI device is required for voice commands - sold separately
***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used

Works with Sonos Certified

This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*. The TX-RZ50 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio.

*Sonos Port required and sold separately.

Built-In Streaming Services

Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

Bi-Directional Bluetooth Wireless Technology

This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

Ready for DTS Play-Fi

DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.

Looking for more? Check out these similar products.

IRK1804C Rack Mount
TX-NR7100 9.2-Channel THX Certified AV Receiver
TX-NR6100 7.2-Channel THX Certified AV Receiver

Features

PRODUCT HIGHLIGHTS

250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification
IMAX® Enhanced certified for immersive signature sound by DTS:X®
11.2-ch processing and pre-outs for 7.2.4 layouts
Supports Dirac Live® Room Correction 20Hz to 20kHz
AccuReflex phase-matching solution for Atmos-enabled speakers
SMART AV Receiver™ Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services
Works with Hey Google or Alexa Sold separately
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard
HDMI® inputs Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0).
HDMI 2.1 HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).
HDMI Sub/Zone 2 Out for media transmission to a second display
Send or receive audio via Bluetooth® wireless technology RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD
Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback
Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks

Specs

AMPLIFIER

Power output (All channels) 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
Dynamic power 250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance 4–16 ohms

TUNER

FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 stations

GENERAL

Power supply AC 120 V~, 60 Hz
Power consumption (operating) 850 W
Power consumption (idle) 75 W
Power consumption (standby) 0.1 W
Dimensions (W x H x D) 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398 mm)
Weight 30.9 lbs. (14.0 kg)

UPC Code

(B) 889951003687

CARTON

Dimensions (W x H x D) 22 7/16˝ x 13 3/16˝ x 19 5/16˝ (570 x 335 x 490 mm)
Weight 37.5 lbs. (17.0 kg)

ACCESSORIES INCLUDED

Power cord
Indoor FM antenna
AM loop antenna
Speaker setup microphone
Quick Start Guide
Remote control
Two AAA (R03) batteries

Docs

Spec Sheet

For more technical detail, download the Spec Sheet here: TX-RZ50 Product Sheet .
