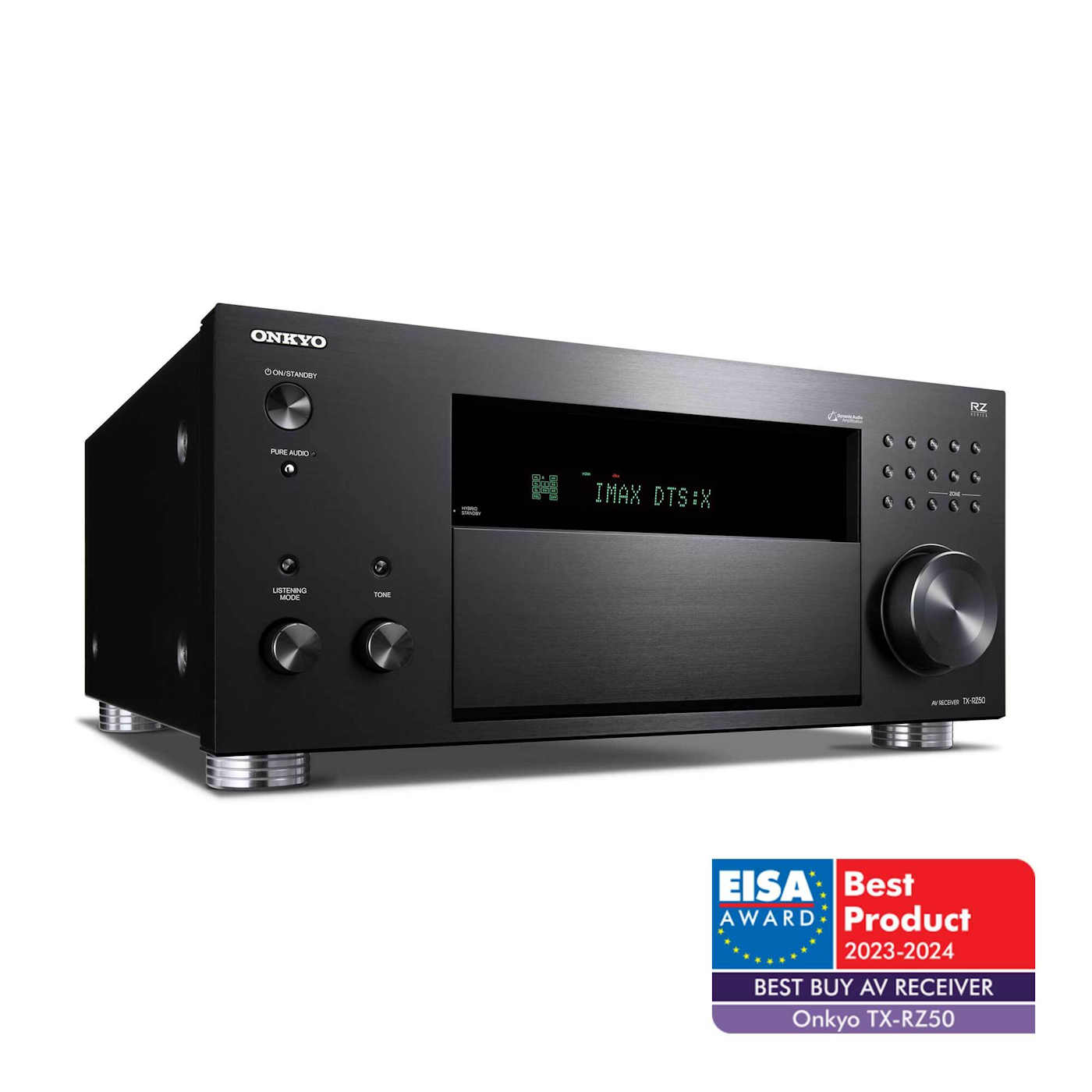

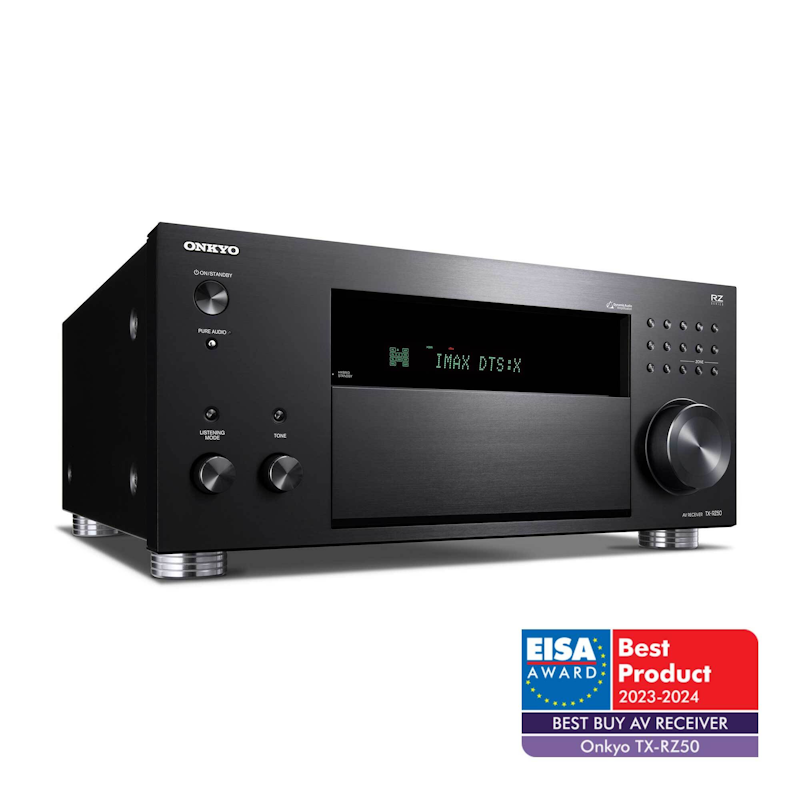

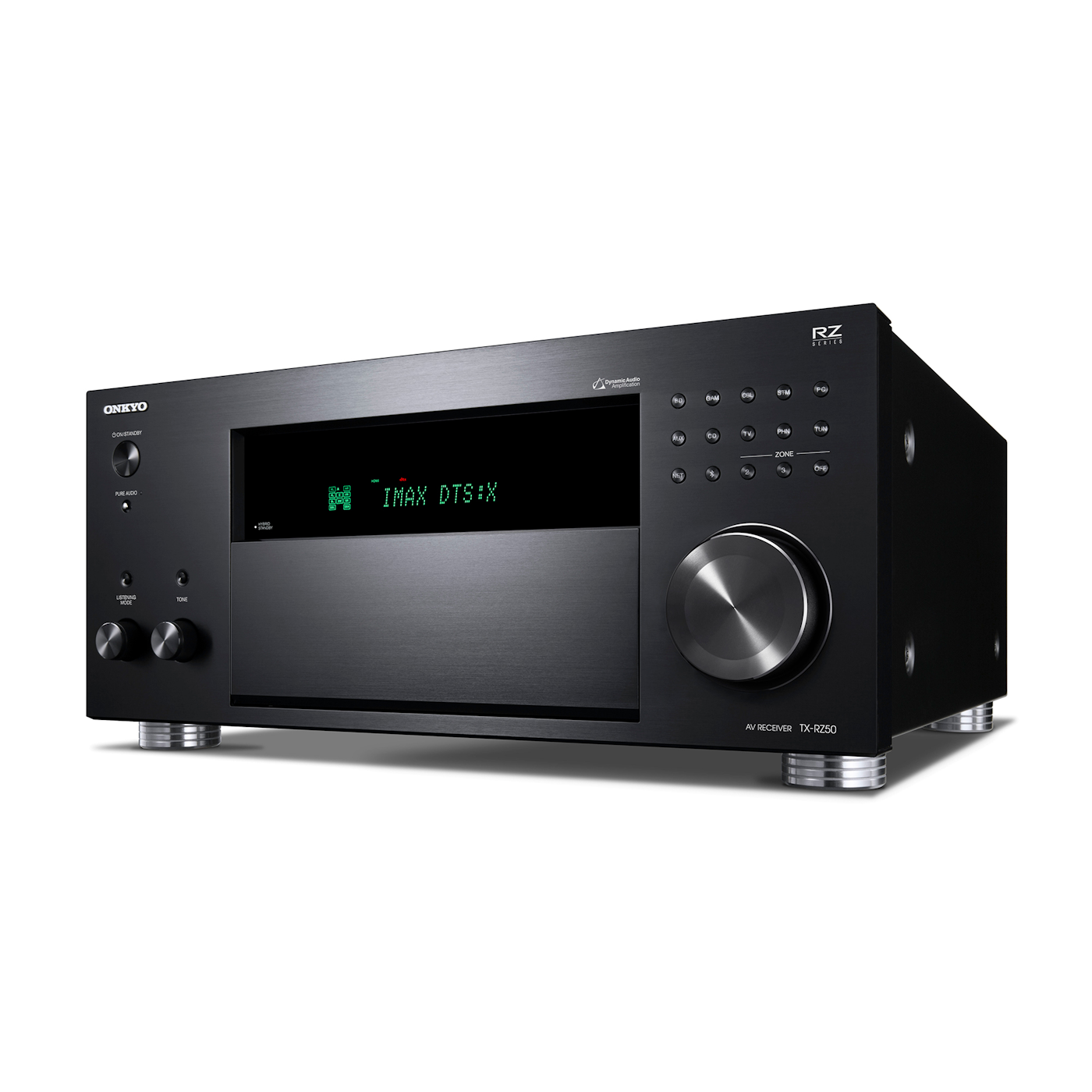

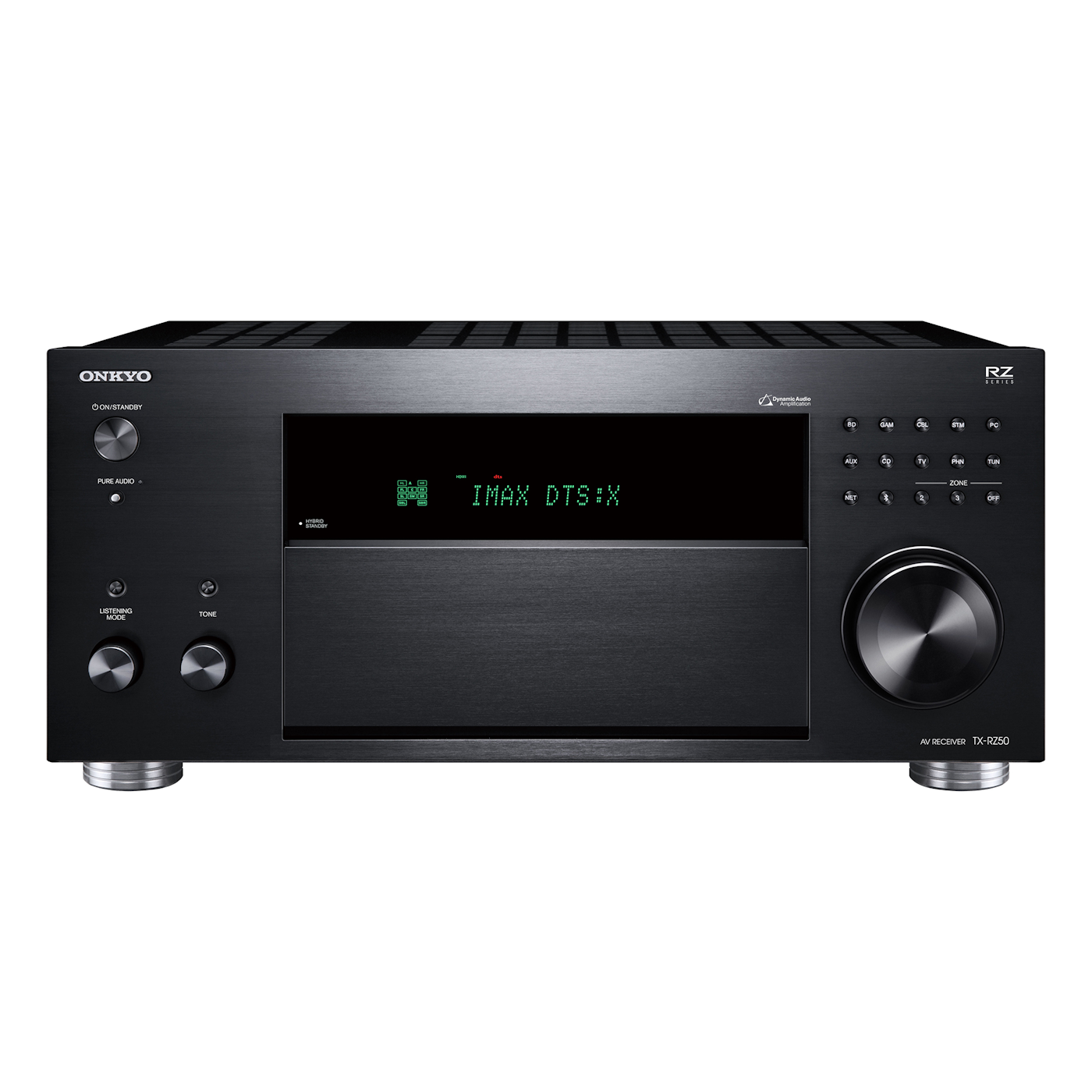

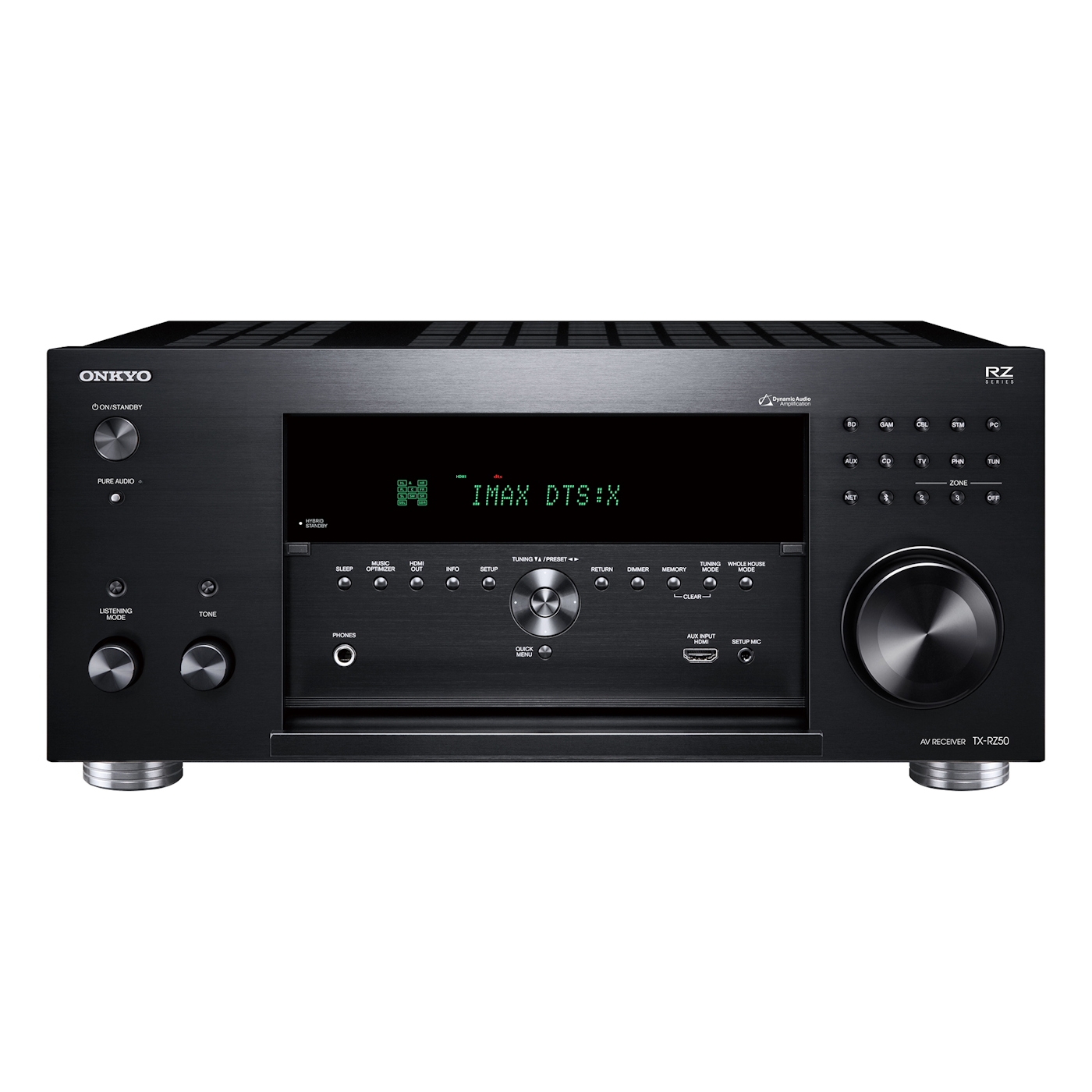

TX-RZ50
9.2-Channel THX Certified AV Receiver
The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.
Additional Features and Benefits
Ultimate 4K Gaming Experience
4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*
*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.
THX Certified
In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
IMAX Enhanced Mode
A vital component of today’s premium home theater experience, this IMAX Enhanced certified AVR replicates the immersive audio and visual quality of IMAX theaters from the comfort of your living room. By allowing object-based audio to be precisely placed and moved in 3D space, in combination with proprietary algorithms optimizing video quality, you’ll experience a vibrant, lifelike experience just as the filmmaker intended.
Built-In Multi-Zone Streaming and Voice Control
The Onkyo TX-RZ50 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**
*A third-party AI device is required for voice commands - sold separately
***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
Works with Sonos Certified
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*. The TX-RZ50 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio.
*Sonos Port required and sold separately.
Built-In Streaming Services
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Bi-Directional Bluetooth Wireless Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Ready for DTS Play-Fi
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
Looking for more? Check out these similar products.
Features
PRODUCT HIGHLIGHTS
250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification | ✓ |
IMAX® Enhanced certified for immersive signature sound by DTS:X® | ✓ |
11.2-ch processing and pre-outs for 7.2.4 layouts | ✓ |
Supports Dirac Live® Room Correction | 20Hz to 20kHz |
AccuReflex phase-matching solution for Atmos-enabled speakers | ✓ |
SMART AV Receiver™ | Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services |
Works with Hey Google or Alexa | Sold separately |
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard | ✓ |
HDMI® inputs | Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0). |
HDMI 2.1 | HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out). |
HDMI Sub/Zone 2 Out for media transmission to a second display | ✓ |
Send or receive audio via Bluetooth® wireless technology | RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD |
Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines | ✓ |
5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback | ✓ |
Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks | ✓ |
Specs
AMPLIFIER
Power output (All channels) | 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC) |
Dynamic power | 250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front) |
THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, half power) |
Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
Frequency response | 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
Signal-to-noise ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
Speaker impedance | 4–16 ohms |
TUNER
FM | 87.5 MHz–107.9 MHz |
AM | 530 kHz–1,710 kHz |
FM/AM preset memory | 40 stations |
GENERAL
Power supply | AC 120 V~, 60 Hz |
Power consumption (operating) | 850 W |
Power consumption (idle) | 75 W |
Power consumption (standby) | 0.1 W |
Dimensions (W x H x D) | 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398 mm) |
Weight | 30.9 lbs. (14.0 kg) |
UPC Code
(B) | 889951003687 |
CARTON
Dimensions (W x H x D) | 22 7/16˝ x 13 3/16˝ x 19 5/16˝ (570 x 335 x 490 mm) |
Weight | 37.5 lbs. (17.0 kg) |
ACCESSORIES INCLUDED
Power cord | ✓ |
Indoor FM antenna | ✓ |
AM loop antenna | ✓ |
Speaker setup microphone | ✓ |
Quick Start Guide | ✓ |
Remote control | ✓ |
Two AAA (R03) batteries | ✓ |
